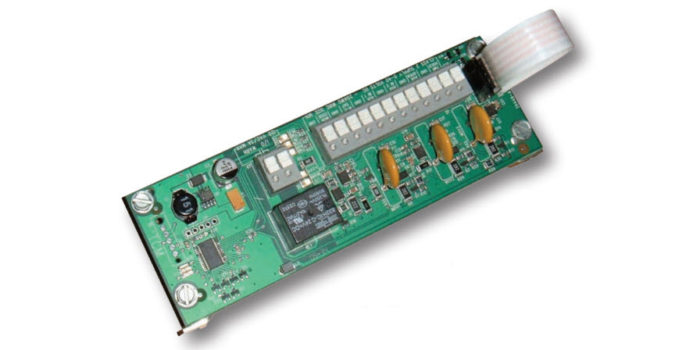

Timer to Close Module

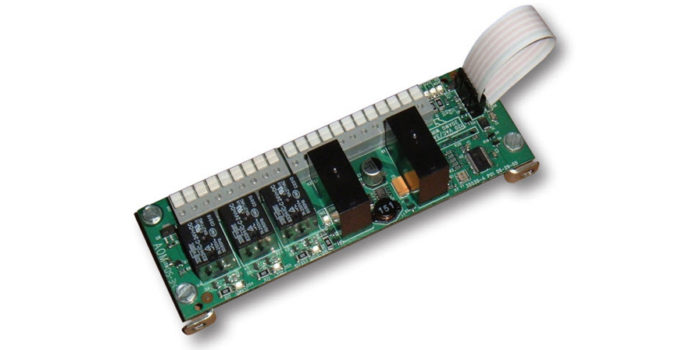

Auxiliary Output Module Overhead Door Company of Bellingham

The Auxiliary Output Module for our X-Series commercial operators offers the integrate other devices such as lights, horns, and other monitoring systems. The component board provides dry relay contacts at door limit positions and lamp output contacts. It also recognizes output deemed applicable to the Americans with Disabilities Act such as a horns or flashing lights. The module is installed in the operator electric box and connects to the main circuit board through an expansion port connector.

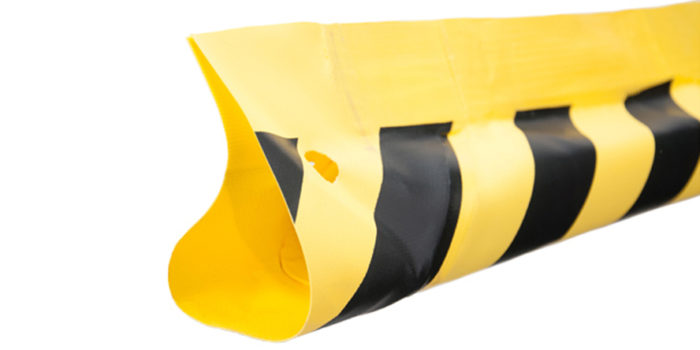

Electric Safety Edge

The Bottom Sensing Edge makes so much sense in regard to convenience and safety that our customers automatically see this entrapment protection as a must-have for their motor-operated doors. The Sensing Edges are made from two completely flexible, conductive contact elements separated by perforated foam. They are attached to the leading edge of motor-driven doors and are electrically activated to auto reverse or auto stop when the soft foam cushion inside the Sensing Edge compresses, causing the internal contacts to meet and immediately send an electrical signal to stop or reverse the motor.

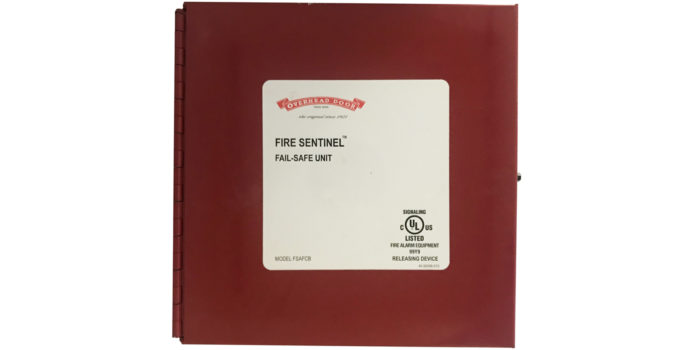

Fire Sentinel Overhead Door Company of Bellingham

The Fire Sentinel® by Overhead Door™ is a release for Fire Doors. It provides standard battery back-up capability and includes multiple options, allowing it to work for almost any application.

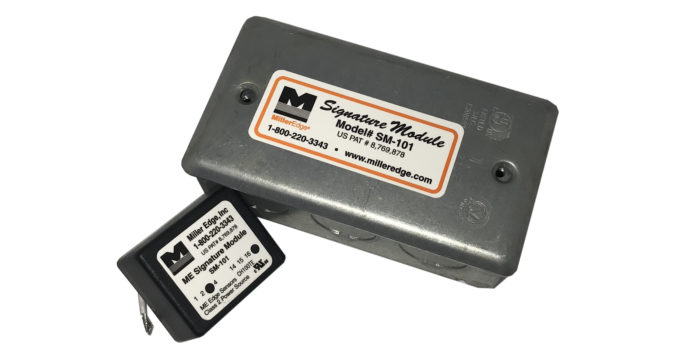

Interface Module

The Monitored Edge Interface Module that monitors the sensing edge of our UL 325 2010 commercial operators provides additional safety. This module serves as an interface between two-wire monitored sensing edges and our X-Series operators. Customers who want to maintain UL 325 2010 compliance while using a sensing edge as a primary safety device must use one of the following modules:  -Monitored Edge Interface Module  -Timer to Close Module

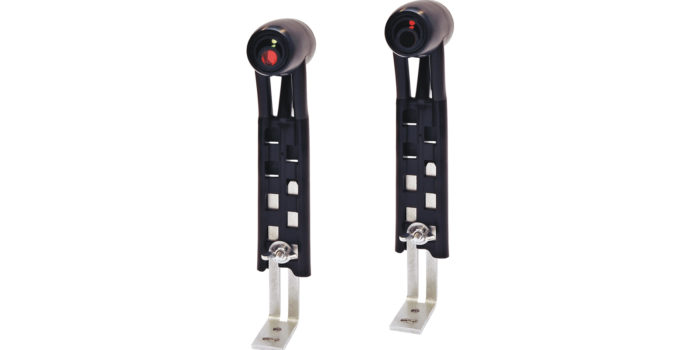

Photo Eye

The Safe-T-Beam® device, which is compatible with our X-Series Commercial Operators, senses an obstruction and signals the operator to stop or reverse the door. The latest in photo eye system technologies, the VITECTOR® NEMA 4/4X OPTOEYE uses an infrared transmitter and receiver safety sensors that are constructed with materials durable enough to easily meet the challenges of the toughest commercial and industrial environments. This photo eye system fulfills the requirement of a monitored external entrapment device and is UL325 compliant.

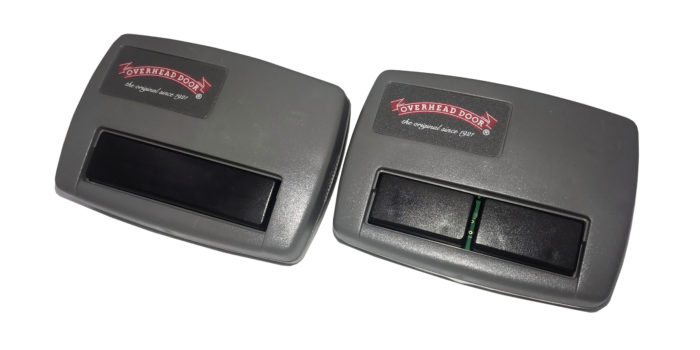

Radio Transmitters

Overhead Door™ commercial radio transmitters are available in the same frequency as your selected transmitter receiver. One, two, three and four button transmitters work with the system and are available in frequencies of 312, 360, 380, and 390 MHz.

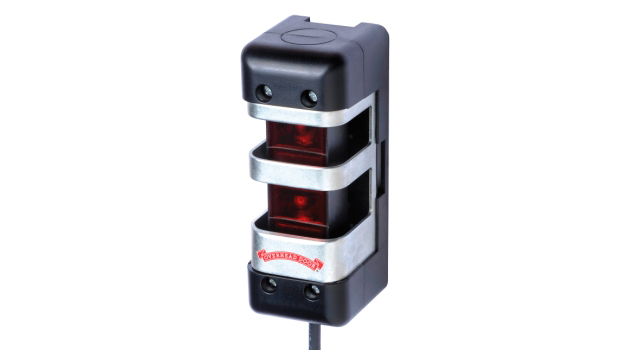

Reflective Photo Eye Overhead Door Company of Bellingham

This reflective photo-eye is intended to withstand the tests of the heaviest duty commercial and industrial uses. This photo-eye uses interference reduction technology or red light technology, which decreases interference from surrounding lighting and infrared sensors frequently experienced around industrial openings. Furthermore these monitored retro-reflective photo eyes feature engineering that enables these sensors to further diminish interference from reflective surfaces.
